🔍 Instruction Finder – Plugin for Cheat Engine 🔍

Instruction Finder is a lightweight Lua plugin for Cheat Engine that helps you search the Memory Viewer – Disassembler for matching instructions, then trace selected rows to collect the memory addresses they access.

The plugin is designed for reverse engineering and trainer research workflows where you need to find candidate instructions, check what addresses they touch, compare hit counts, and save the collected results for later analysis.

Instead of manually scrolling through the disassembler and testing one instruction at a time, you can scan a custom address range, use wildcard patterns, trace one or more selected memory instructions, and review the accessed addresses in a second table with live values.

---

---

📌 Plugin Information 📌

• Name: MiMemory Viewer – Instruction Finder
• Version: 1.0
• Author: mul0
• Website: https://mul0.com/
• Platform: Cheat Engine Lua plugin
• Main entry point: Memory Viewer – Search – Instruction Finder

---

⚡ What the Plugin Does ⚡

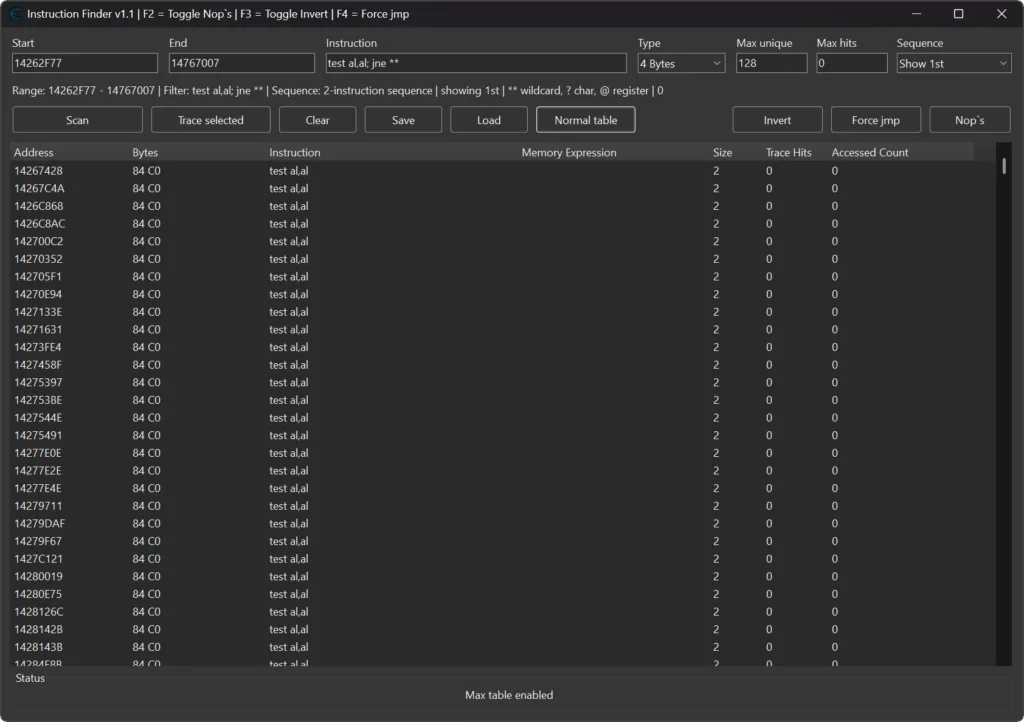

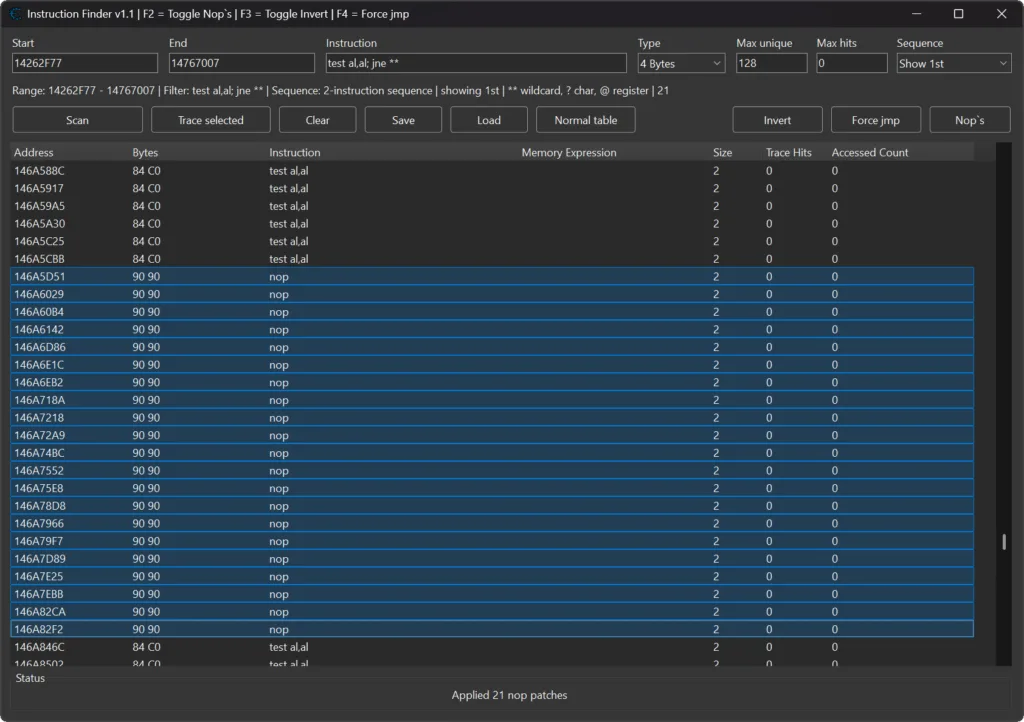

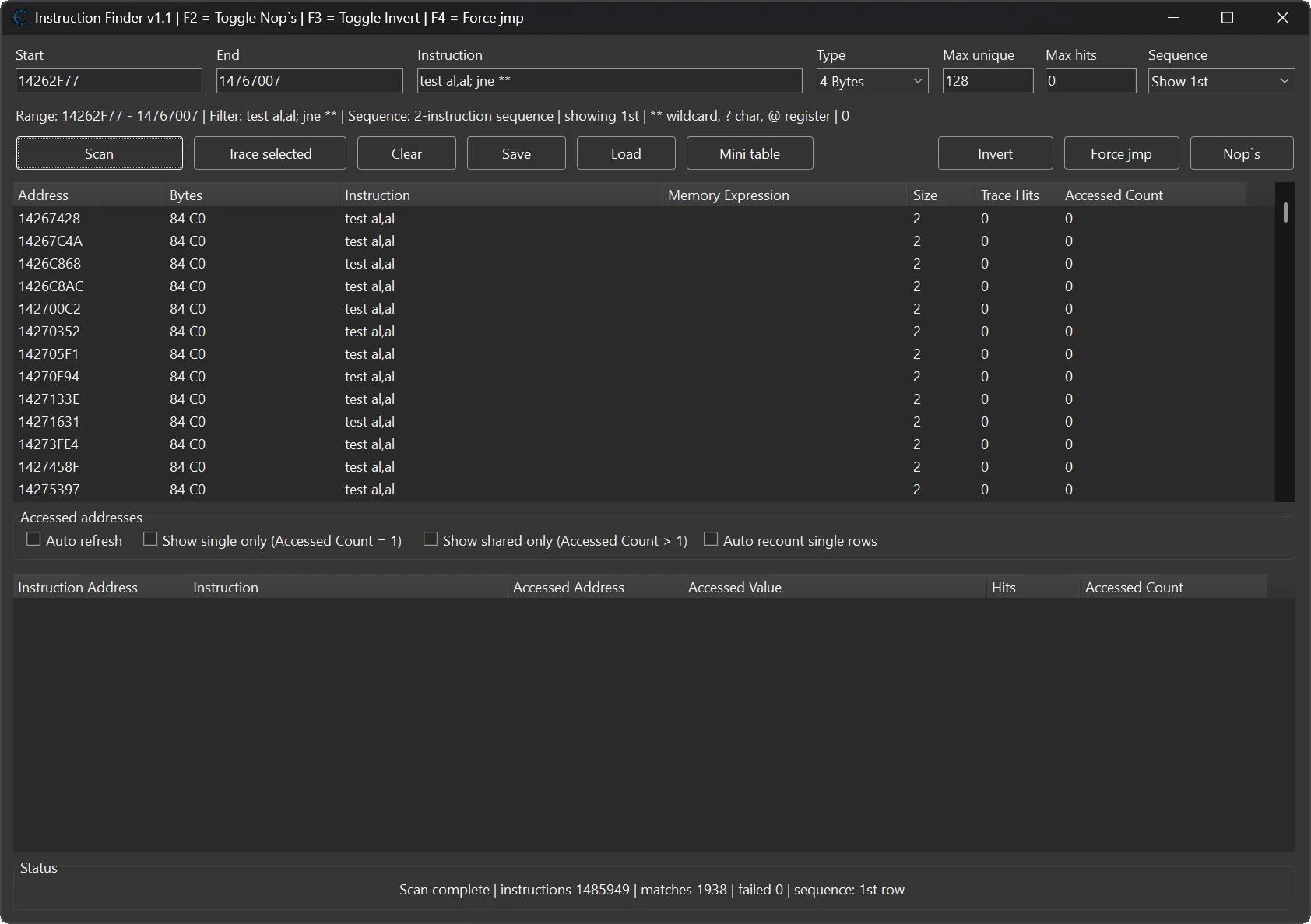

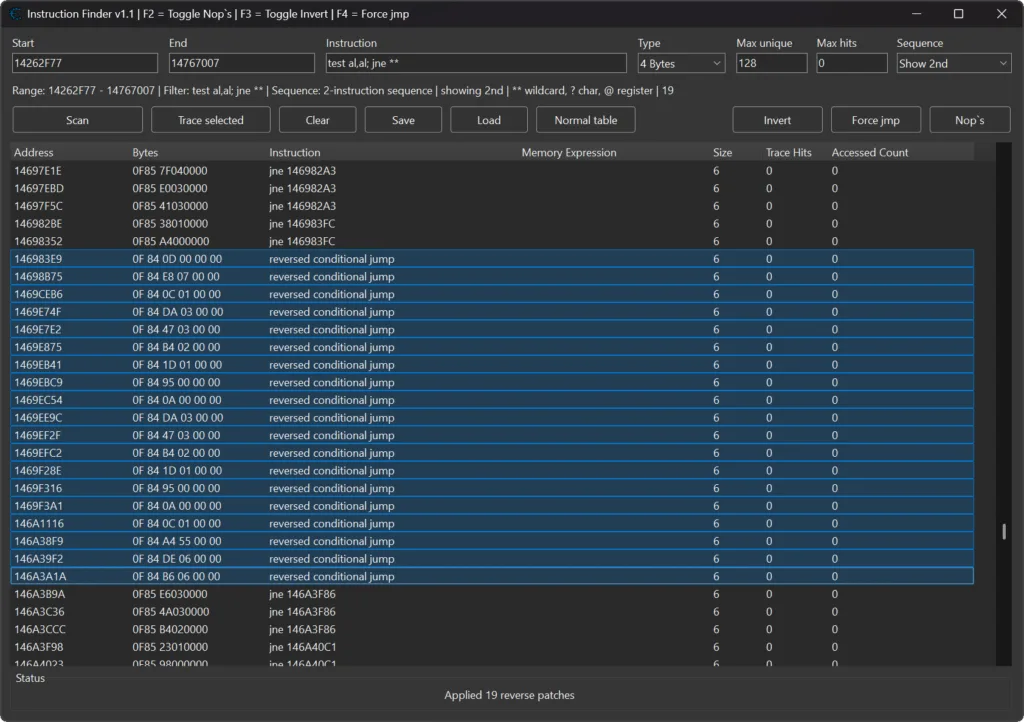

Instruction Finder opens a resizable tool window from Cheat Engine’s Memory Viewer. The window contains a scan range, an instruction filter, value display settings, trace limits, and two result tables.

The first table lists matching disassembly instructions. The second table lists accessed addresses collected while tracing selected instructions with execute breakpoints.

This makes it easier to:

• Search a selected area of disassembly for instruction patterns.
• Find instructions that use memory expressions such as [eax+10], [esi+000005A5], or similar operands.
• Trace selected instruction rows and collect the addresses touched by those instructions.
• View accessed values as bytes, integers, floats, doubles, or arrays of bytes.
• Compare hit counts and unique accessed-address counts.
• Filter noisy stack-offset rows and duplicate accessed addresses.
• Save and load scan/access results as TSV files.

---

🚀 Key Features 🚀

✨ Custom Disassembly Range Scan

• Set a Start and End address and scan only the part of the disassembler you care about. When the window opens, the plugin can fill the range around the currently selected Memory Viewer address.

✨ Instruction Search With Wildcards

The instruction filter supports plain text and extended wildcard tokens:

• * or ** – any text fragment.
• ? – one unknown character.
• @ – any general register except stack/base/instruction pointer registers such as esp, ebp, eip, rsp, rbp, and rip.

Example: mov al,[e** can match instructions such as mov al,[esi+000005A5] or mov al,[eax+10].
Example: mov al,[@ can match memory reads through many different registers.

✨ Instruction Presets

Right-click the instruction filter field to choose common presets, including:

• fld dword ptr [e**+00
• fstp dword ptr [e**+00
• movss xmm?,[e**+00
• movss [e**+00****],xmm?
• mov e**,[e**+0
• cmp [e**+
• test e**,e**

✨ Trace Selected Instructions

• Select one or more found instruction rows and click Trace selected. The plugin places execute breakpoints on traceable rows, waits for the target code to run, evaluates the bracketed memory expression, and records the accessed addresses.
• The trace table shows the Instruction Address, Instruction, Accessed Address, Accessed Value, Hits, and Accessed Count.

✨ Trace Limits

• Use Max unique to stop tracing after a selected instruction reaches a specific number of unique accessed addresses. Use Max hits to stop after a specific number of breakpoint hits. A value of 0 means unlimited for that field.

✨ Live Value Display

• The accessed-value column can display data as 1 Byte, 2 Bytes, 4 Bytes, 8 Bytes, Float, Double, or Array of Bytes. The Auto refresh option updates values in small batches.

✨ Access Filters

The result tables include filters for common cleanup tasks:

• Hide [esp+] / [ebp+] filters stack-offset rows from the instruction or access table.
• Show single only shows rows where the instruction touched exactly one unique accessed address.
• Show shared only shows rows where the instruction touched more than one unique accessed address.
• Hide duplicate accessed addresses keeps the access table easier to review when the same address appears multiple times.
• Auto recount single rows can re-check rows with Accessed Count = 1 in a small queued batch.

✨ Save and Load Results

• The Save button exports both tables to a TSV file. The file stores metadata such as version, save time, value type, scan range, and instruction filter. The Load button restores saved instruction and access rows.

---

⌨️ Hotkeys and Shortcuts ⌨️

• Ctrl+Shift+E – open Instruction Finder from the active Memory Viewer.
• Ctrl+A – select all rows in the active result table.
• Ctrl+C – copy selected rows from the active result table.
• Delete – delete selected rows from the instruction table.
• Double-click an instruction row – jump to that instruction in the Memory Viewer disassembler.
• Double-click an access row – jump to the instruction address.
• Shift + double-click an access row – jump to the accessed address in the hexadecimal view.

The instruction and access tables also include right-click context menus for tracing, copying, filtering, deleting rows, and jumping to addresses.

---

📒 Example Workflow 📒

1. Attach Cheat Engine to the target process.
2. Open Memory Viewer and select an address near the code you want to inspect.
3. Open Search – Instruction Finder or press Ctrl+Shift+E.
4. Enter an instruction filter, for example mov al,[e**, mov al,[@, or one of the built-in presets.
5. Click Scan. The scan starts after a short delay, and the same button can cancel or stop it.
6. Select one or more rows that contain memory expressions in brackets.
7. Click Trace selected, then trigger the target code in the game or application.
8. Review accessed addresses, values, hit counts, and unique counts in the access table.
9. Use filters, copy rows to the clipboard, or save the tables as a TSV file.

---

⚙️ Installation ⚙️

1. Download MiMemory Viewer – Instruction Finder.lua.
2. Copy the file into Cheat Engine’s autorun folder: Cheat Engine\autorun\
3. Restart Cheat Engine.
4. Open Memory Viewer.
5. Open Search – Instruction Finder or press Ctrl+Shift+E.

---

⚠️ Notes ⚠️

• Tracing uses Cheat Engine’s debugger breakpoint API.
• Only instruction rows with bracketed memory expressions can be traced.
• Run the target code while tracing so the breakpoints can collect real accessed addresses.
• Large ranges can take longer to scan, so start with a focused range around the code you are researching.

---

💬 Feedback & Support 💬

Have suggestions, bug reports, or workflow ideas? Leave a comment below.

---
